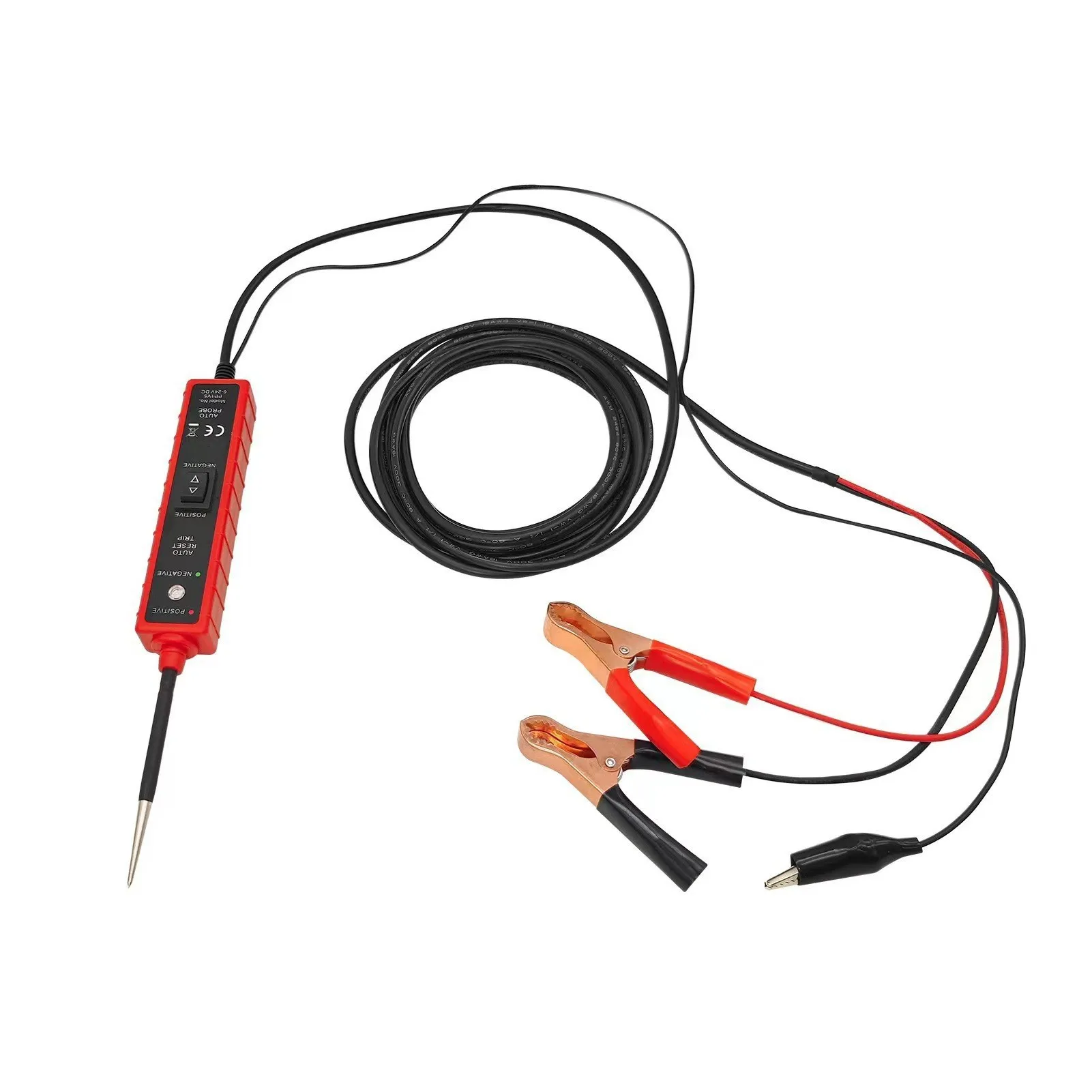

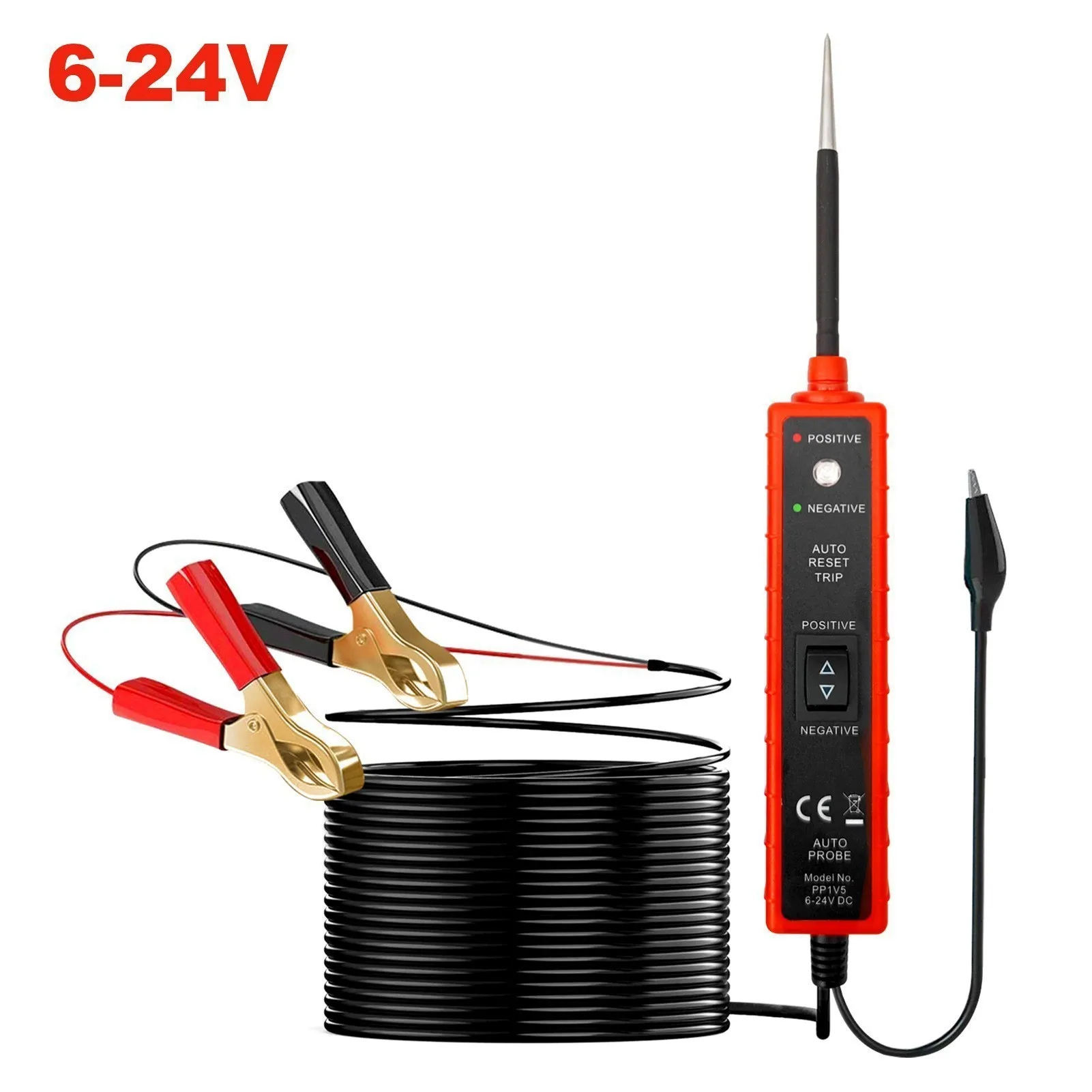

EM285 Car Circuit Tester Electrical System Automotive Accessories Diagnostic Tool Multi-Function Power Voltage Testing Probe
In Stock
Categories:
Unknown TypeTags:
Car ElectronicsSKU:
Quantity
Guaranteed Safe Checkout
SPECIFICATIONS
Brand Name: NoEnName_Null
Certification: RoHS,CE
Choice: yes
Electronic: No
External Testing Certification: ce
Hign-concerned Chemical: None
Is Batteries Included: No
Item Height: 3
Item Length: 26.5
Item Type: Electrical Testers & Test Leads
Item Weight: 320
Item Width: 9
Material: PC
Model Name: EM285
Origin: Mainland China
Use: Not Telecommunication
Voltage: 6 - 24V
semi_Choice: yes
Features:

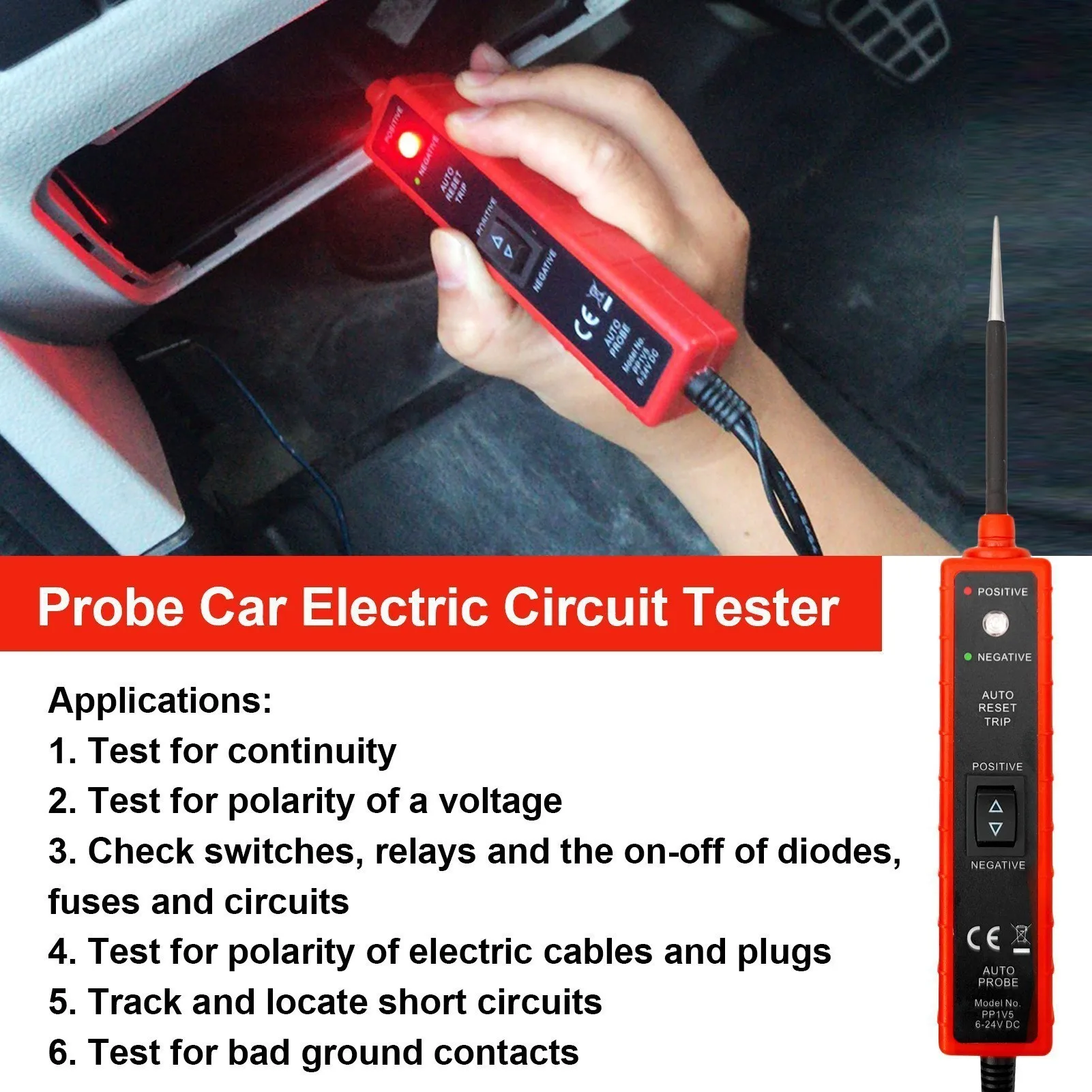

Wide range applications: Car circuit tester can be used to test continuity, test polarity of a voltage, check lamp, check electric motor, follow and locate short circuits, test for bad ground contacts etc.
Long test lead: The cable length is about 16ft which allows you test any electrical system easily.
Short-circuit protection: The unit has short-circuit protection and can test for bad ground contacts instantly.
Easy operation: After a simple hook-up of the unit to the vehicle's battery, automotive technician can conduct a positive or negative battery current to the tip by rocking the power switch forward or backward.
Comprehensive 6-24V DC test kit: Do not use on AC voltage.
Operation Instrcutions:
Unroll the unit's cable
Clamp the red clip to the positive terminal of the vehicle's battery
Clamp the black clip to the negative terminal of the vehicle's battery

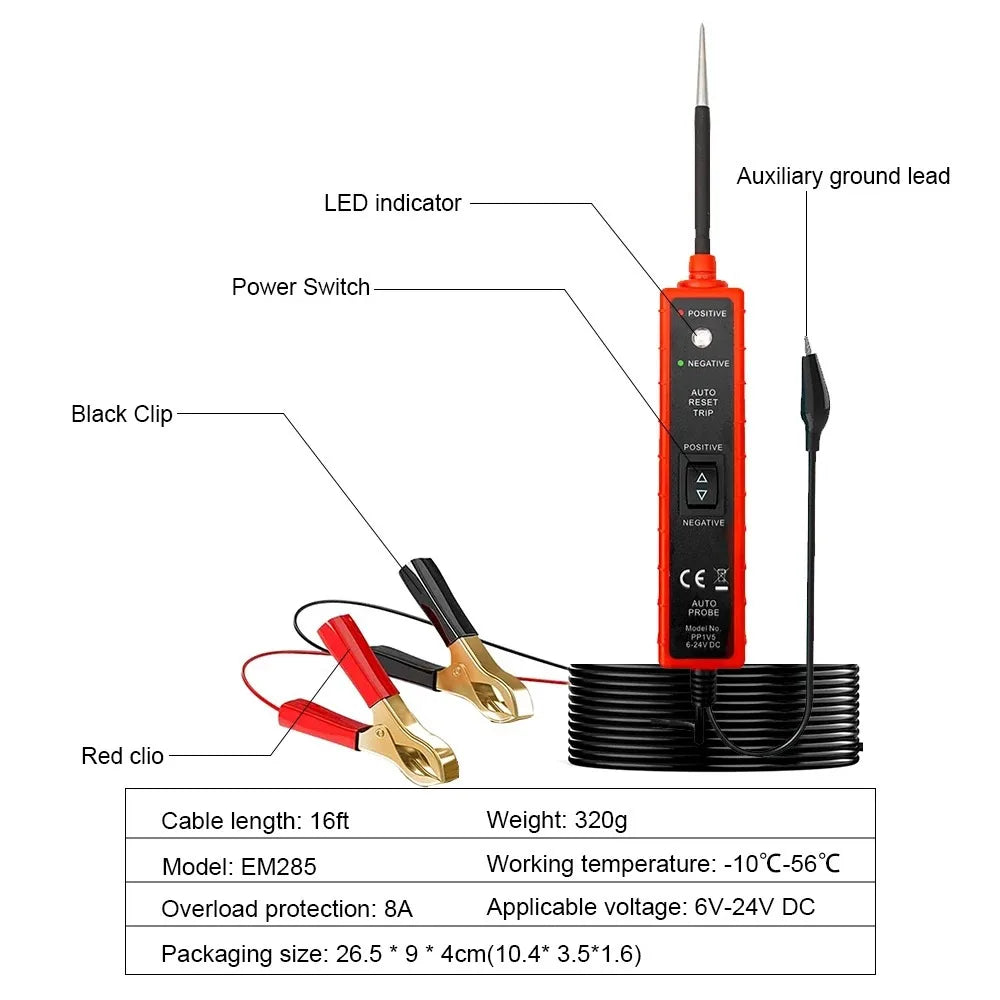

Specifications:
Color: red
Operation Voltage: 6-24V DC
Cable Length: 16ft
Overload Protection: 8A (When the current exceeds 8A, this item will disconnect the current automatically.)
Package Size: 26.5 * 9 * 4cm
Package Weight: 320g
Package List:
1 * Car Circuit Tester
